The buck-ready Ranger variant for compatible breakout-board layouts, built for customers who need the Ranger middle footprint with added room and planning support for regulated power paths.
Ranger Bucks is the buck-ready Ranger option. The Ranger Standard page shows the simpler relay-oriented Ranger layout.
Approximate overall outside dimensions are shown in inches first, with millimeters in parentheses, including the installed lid and mounting tabs.
Ranger Bucks is the buck-ready Ranger option in the WestTechHA enclosure line. It fits the Ranger middle footprint while providing a cleaner path for buck-converter style power planning.
Ranger Bucks is being separated into its own Ranger page so the buck-ready layout can be shown clearly. Available through the order/quote path from the existing Ranger Standard checkout path.
Unloaded is the bring-your-own-hardware path. It includes the printed enclosure, lid, brass threaded inserts, standard enclosure hardware, and matched insert layout for the selected family. Electronics and firmware are not included unless specifically stated at checkout.
Loaded is the pre-assembled path for customers who want the selected electronics path handled before shipment. Loaded ESP32-based products include a basic pre-shipment diagnostic check and WestTech Home Automation ESP32 Quick Start firmware to help with first setup before you upload your own project firmware.
Loaded ESP32-based products are prepared before shipment so customers have a clear first setup path instead of receiving a blank board.
Before a Loaded product ships, WestTech Home Automation performs a basic diagnostic check on the installed ESP32 path. This helps confirm the device powers on, boots correctly, and is ready for the customer setup process.
Loaded ESP32-based products ship with WestTech Home Automation ESP32 Quick Start firmware installed. It is designed to make the device easier to find, connect, and verify on your network before you upload your own project firmware.
Ranger Bucks is for customers who like the Ranger footprint but need a buck-ready layout support instead of the simpler Ranger Standard path.
Best when Scout feels tight, when wiring needs more breathing room, or when the project benefits from a larger internal footprint while still staying in a practical indoor enclosure family.
Ranger Bucks Unloaded is designed for customers who know their hardware path and need more space. Ranger Bucks Loaded is the step up when you want WestTechHA to pre-load the family with the appropriate hardware instead.

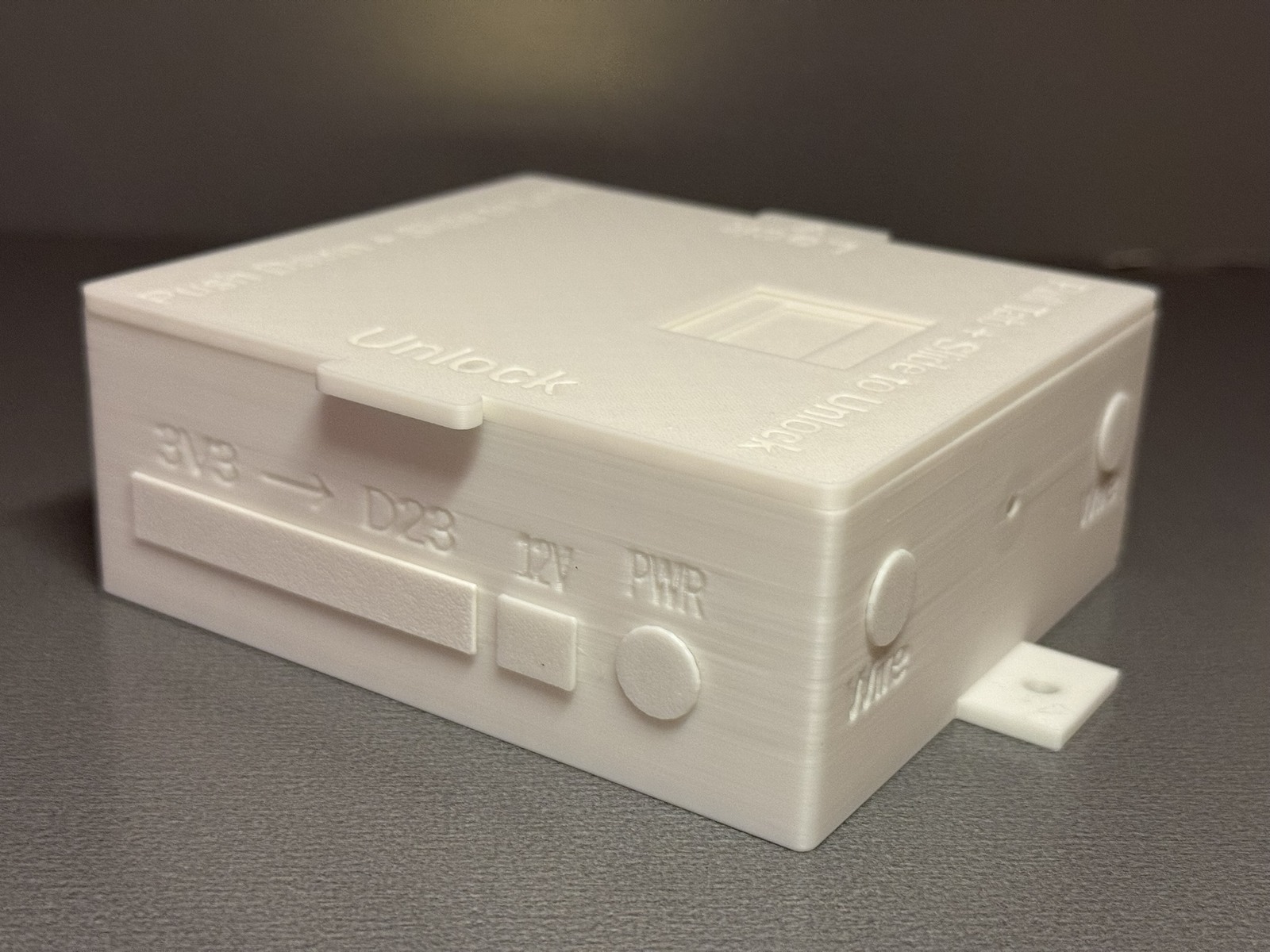

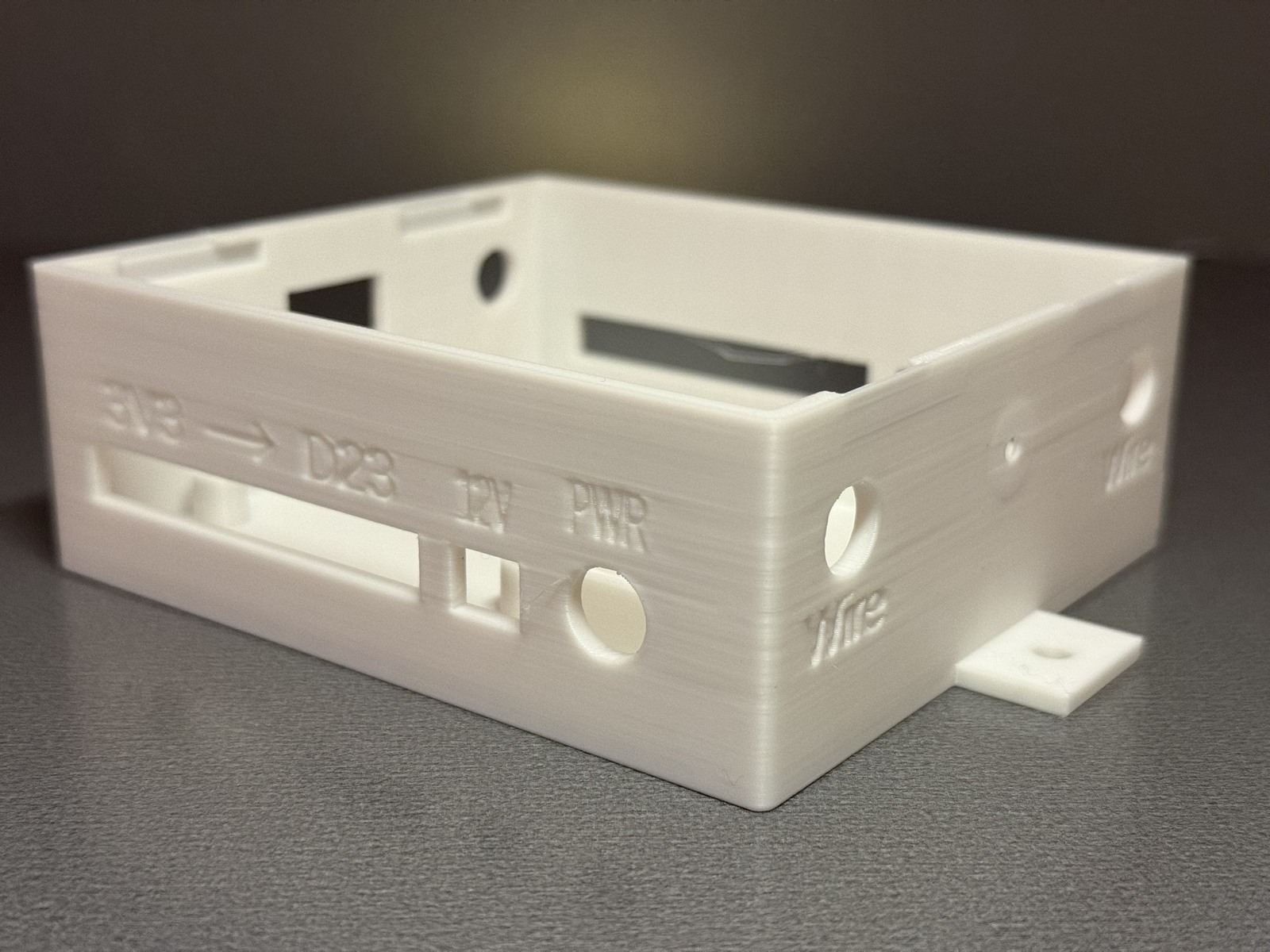

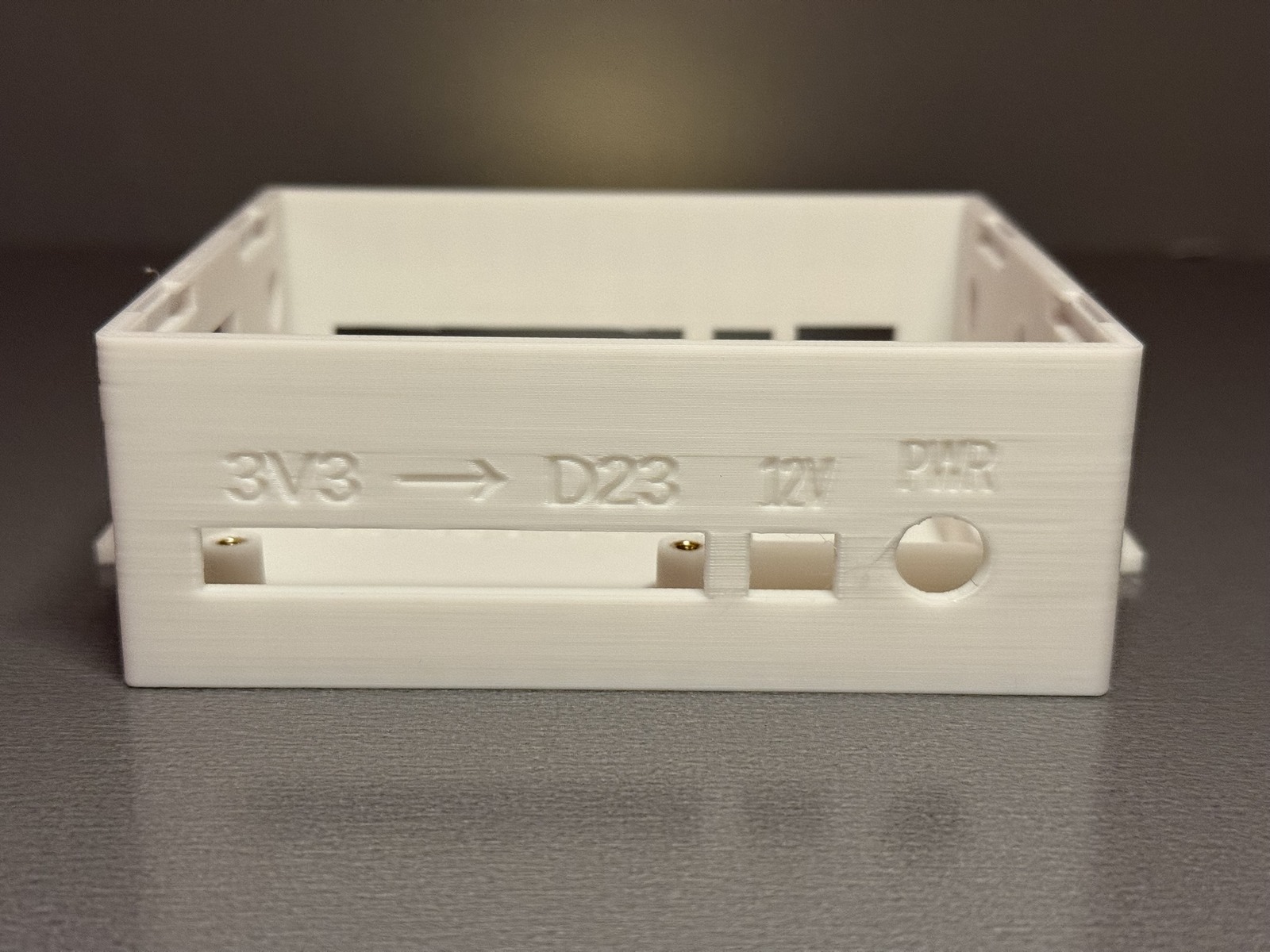

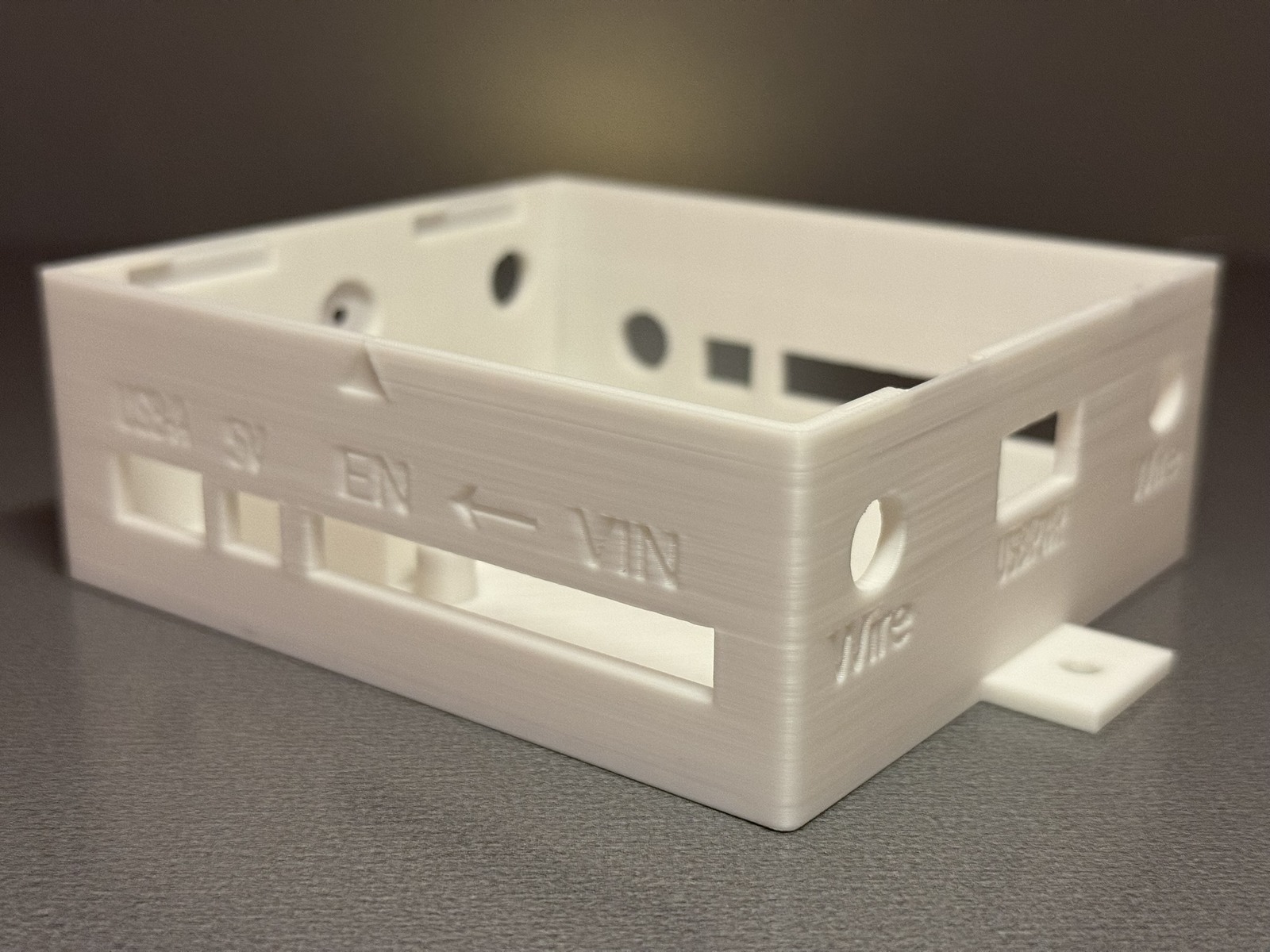

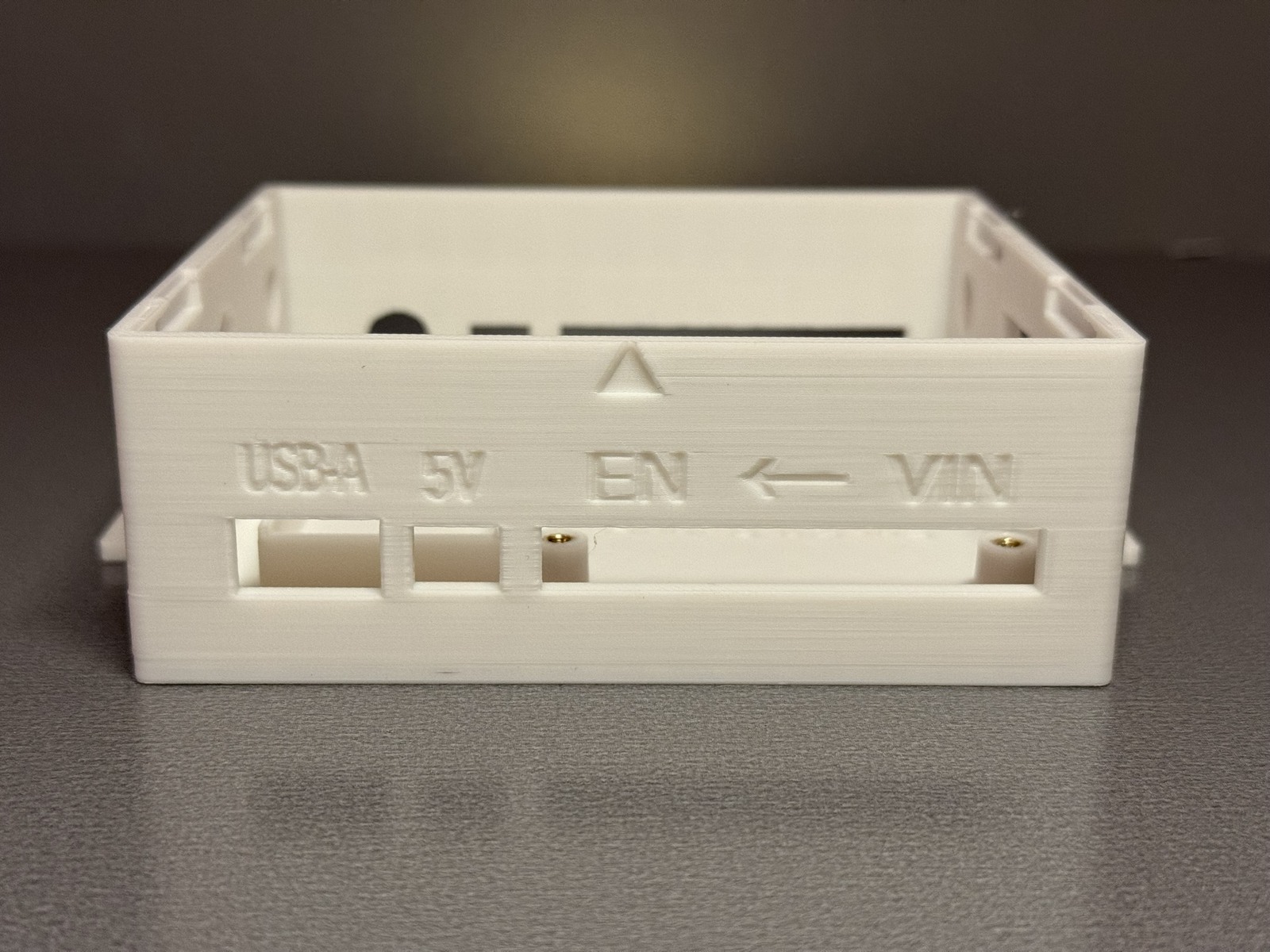

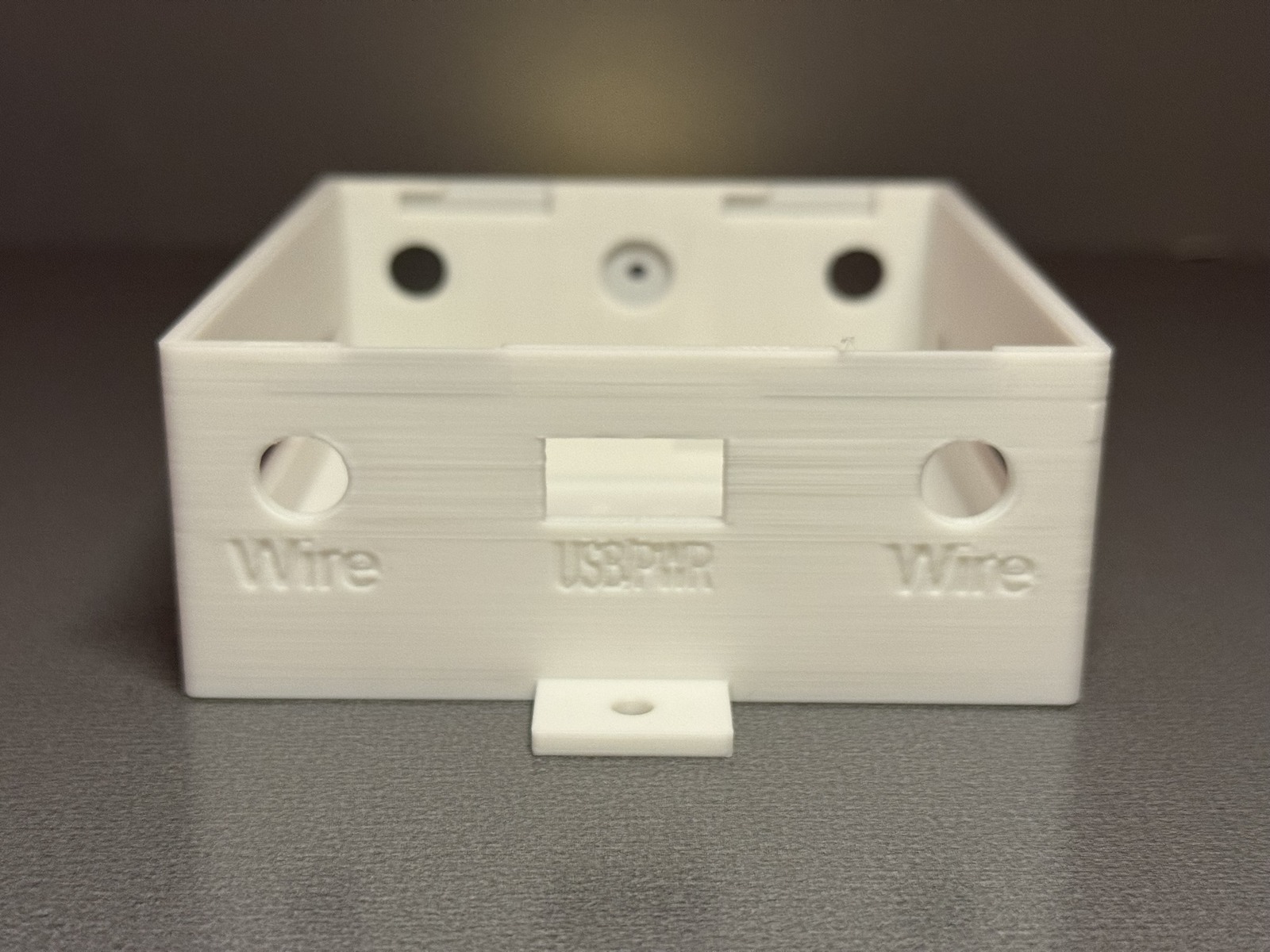

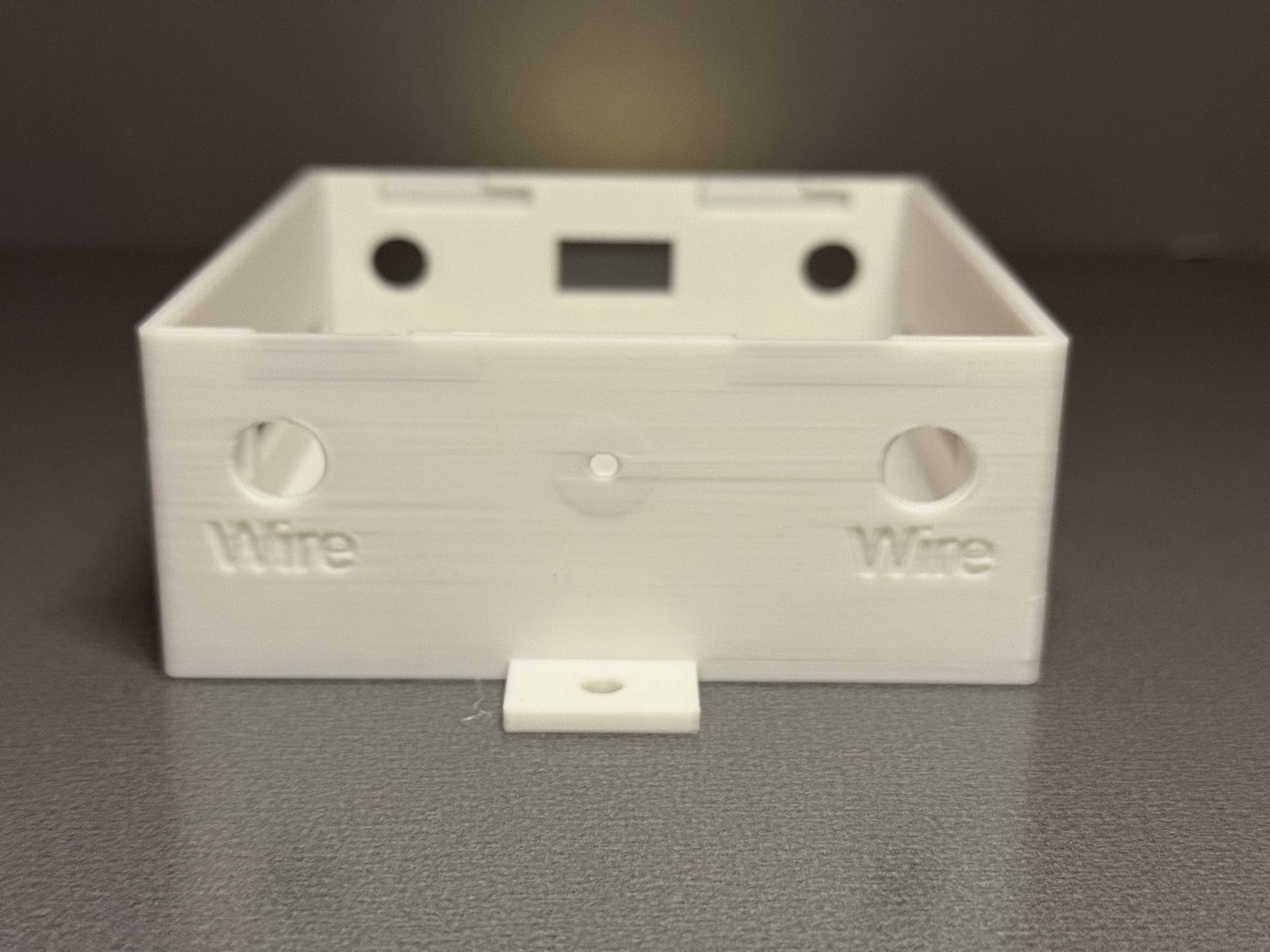

These views show the Ranger Bucks enclosure variant assembled, open, and from key side/detail angles.
Customers should understand the filament, serviceable brass insert hardware, and use limitations before choosing an application.
WestTechHA enclosure families are printed in PLA+ 2.0 for indoor use.
These enclosures are not IP-rated and are not designed for wet or direct sunlight locations. Customers should confirm the intended environment is appropriate before ordering.
Current WestTech Home Automation enclosures include brass threaded inserts at key mounting points. These inserts make the enclosure easier to assemble, reopen, service, and reuse during future hardware changes without wearing out printed plastic screw holes.
These photos show the buck-ready board layout and HSI serviceable mounting examples for Ranger Bucks planning.
Interior reference showing the Ranger Bucks 30 board layout, buck-ready layout support, and HSI serviceable mounting system.
Interior reference showing the Ranger Bucks 38 board layout, buck-ready layout support, and HSI serviceable mounting system.
Photos in this section show board layout and mounting examples. Electronics, buck converters, relay modules, wiring, or accessories are not included unless specifically stated on the checkout or order page.
