Board Layout & Hardware Reference

A shared reference for board layout photos, HSI mounting examples, and important notes about hardware shown in WestTechHA product photos.

Important
Hardware photos are for planning unless stated otherwise

Photos may show electronics, wiring, relay modules, buck converters, display modules, buzzers, DHT11 sensors, or other accessories as layout references. Hardware is only included when the selected product option or checkout page specifically states that it is included.

Unloaded Products
Bring-your-own-hardware path

Unloaded products are enclosure-focused. They include the printed enclosure path and stated enclosure hardware, but electronics and firmware are not included unless specifically stated.

Loaded Products
Pre-assembled path where listed

Loaded products include the selected electronics path where listed, plus pre-shipment diagnostics and Quick Start firmware for ESP32-based products.

Scout
Scout board layout and HSI examples

Compact Scout board layout references for 30-pin and 38-pin versions.

Scout 30 board layout and HSI mounting example
Scout 30

30-pin board layout / HSI

Interior reference showing the Scout 30 board layout and HSI serviceable mounting points.

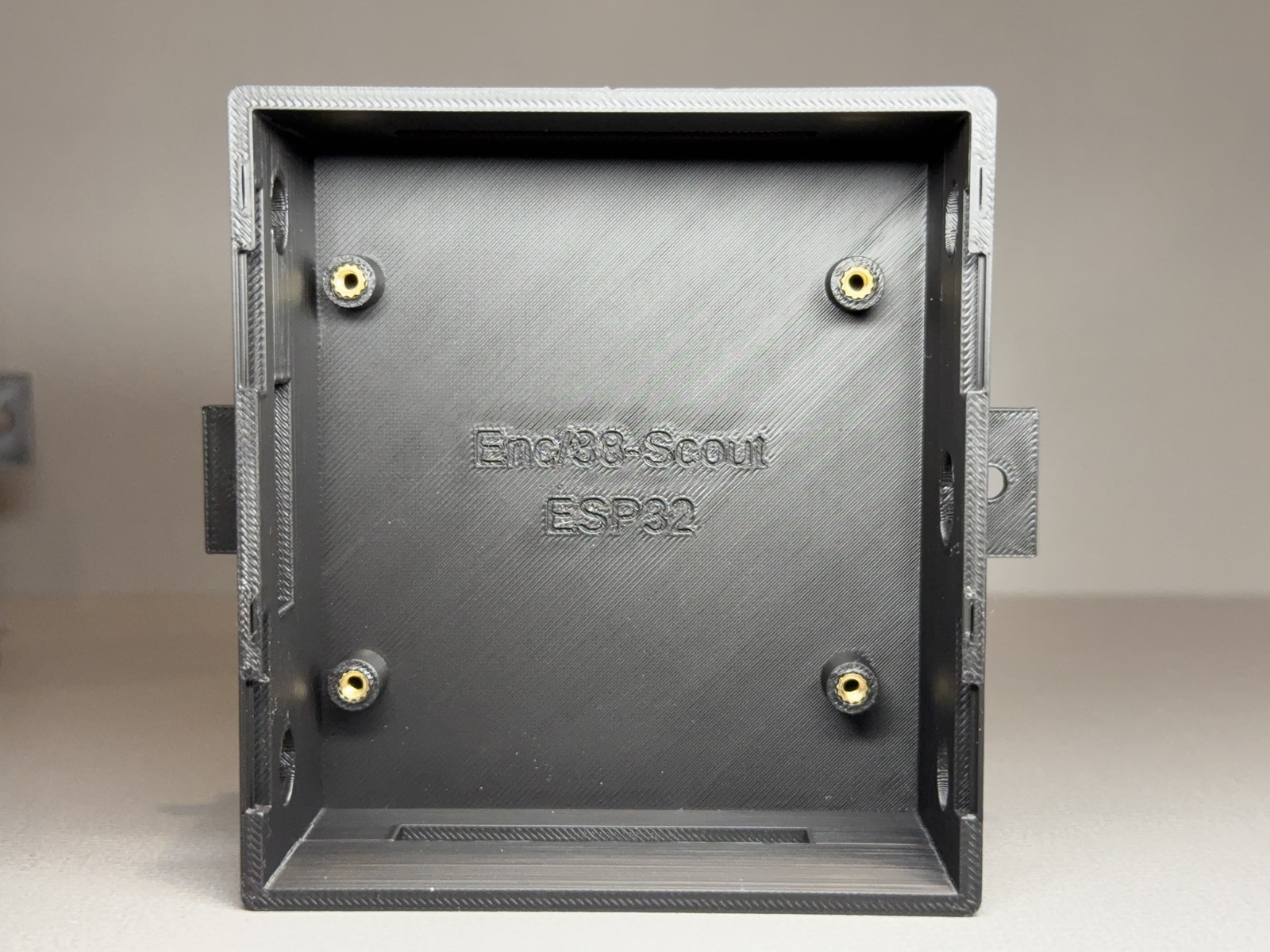

Scout 38 board layout and HSI mounting example
Scout 38

38-pin board layout / HSI

Interior reference showing the Scout 38 board layout and HSI serviceable mounting points.

Ranger
Ranger Relay and Ranger Bucks layout examples

Ranger is the middle family. These examples separate the relay-oriented layout from the buck-ready layout.

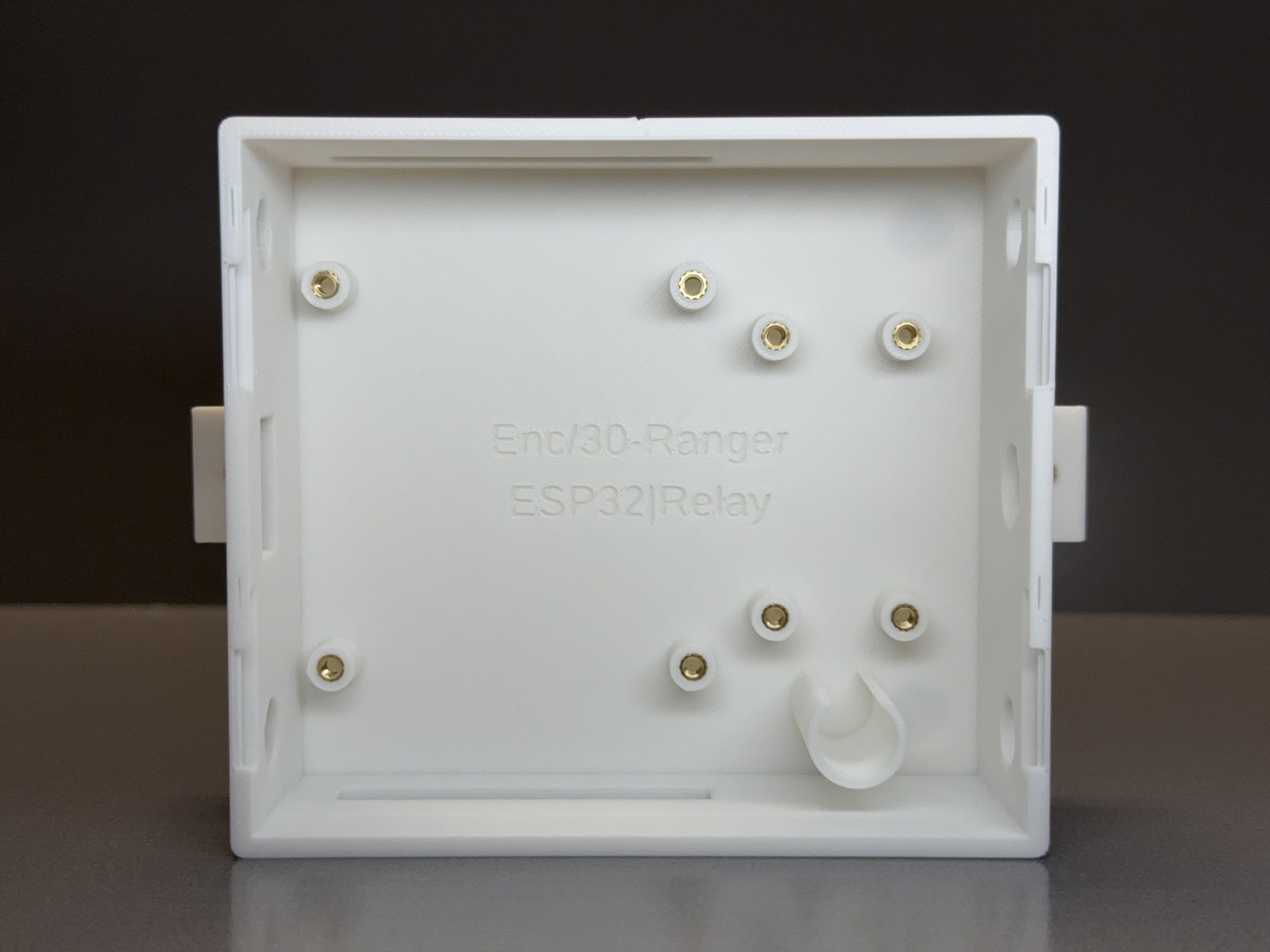

Ranger Relay 30 board layout and HSI mounting example
Ranger Relay 30

30-pin relay layout / HSI

Interior reference showing the Ranger Relay 30 layout and HSI serviceable mounting points.

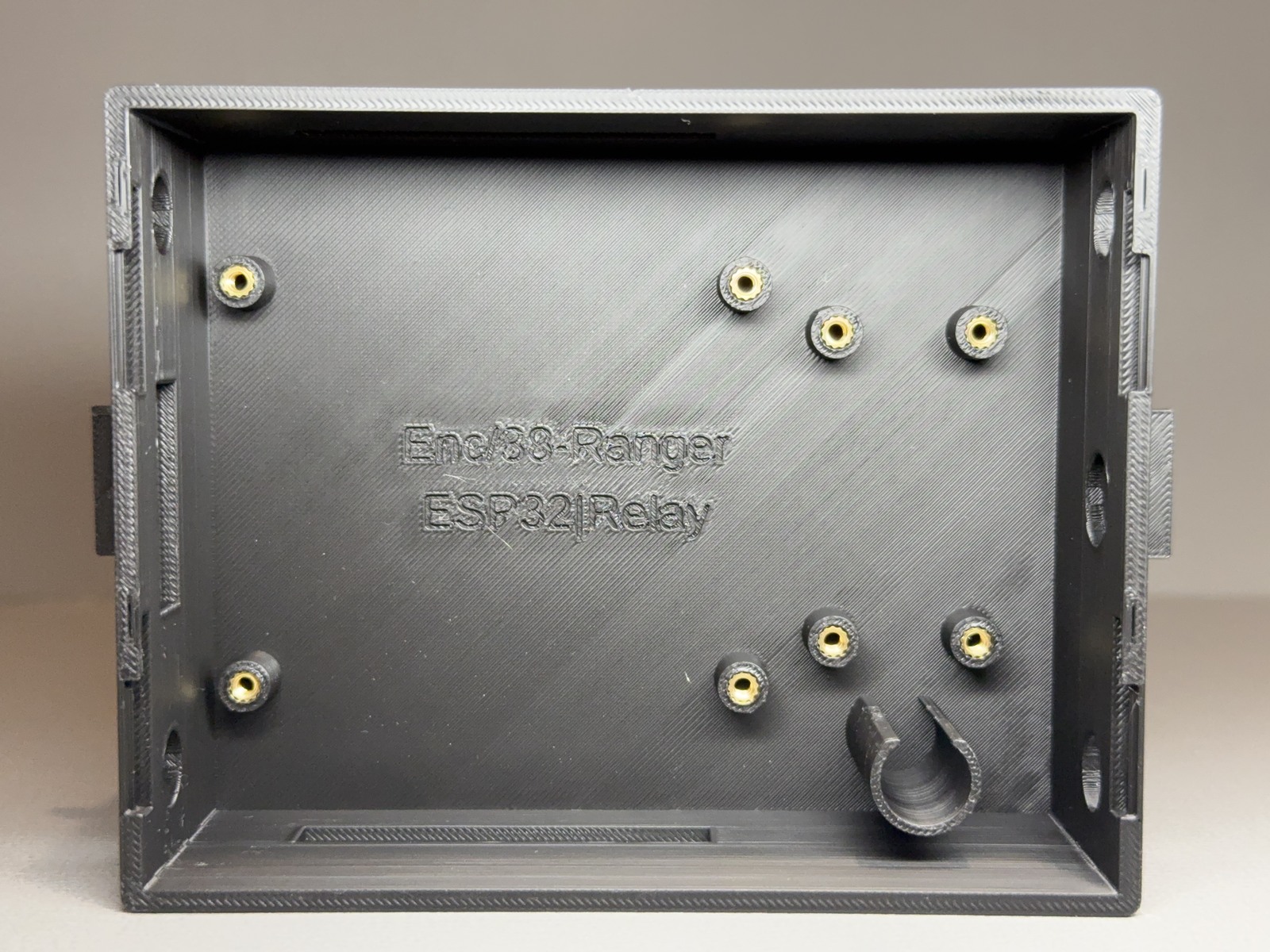

Ranger Relay 38 board layout and HSI mounting example
Ranger Relay 38

38-pin relay layout / HSI

Interior reference showing the Ranger Relay 38 layout and HSI serviceable mounting points.

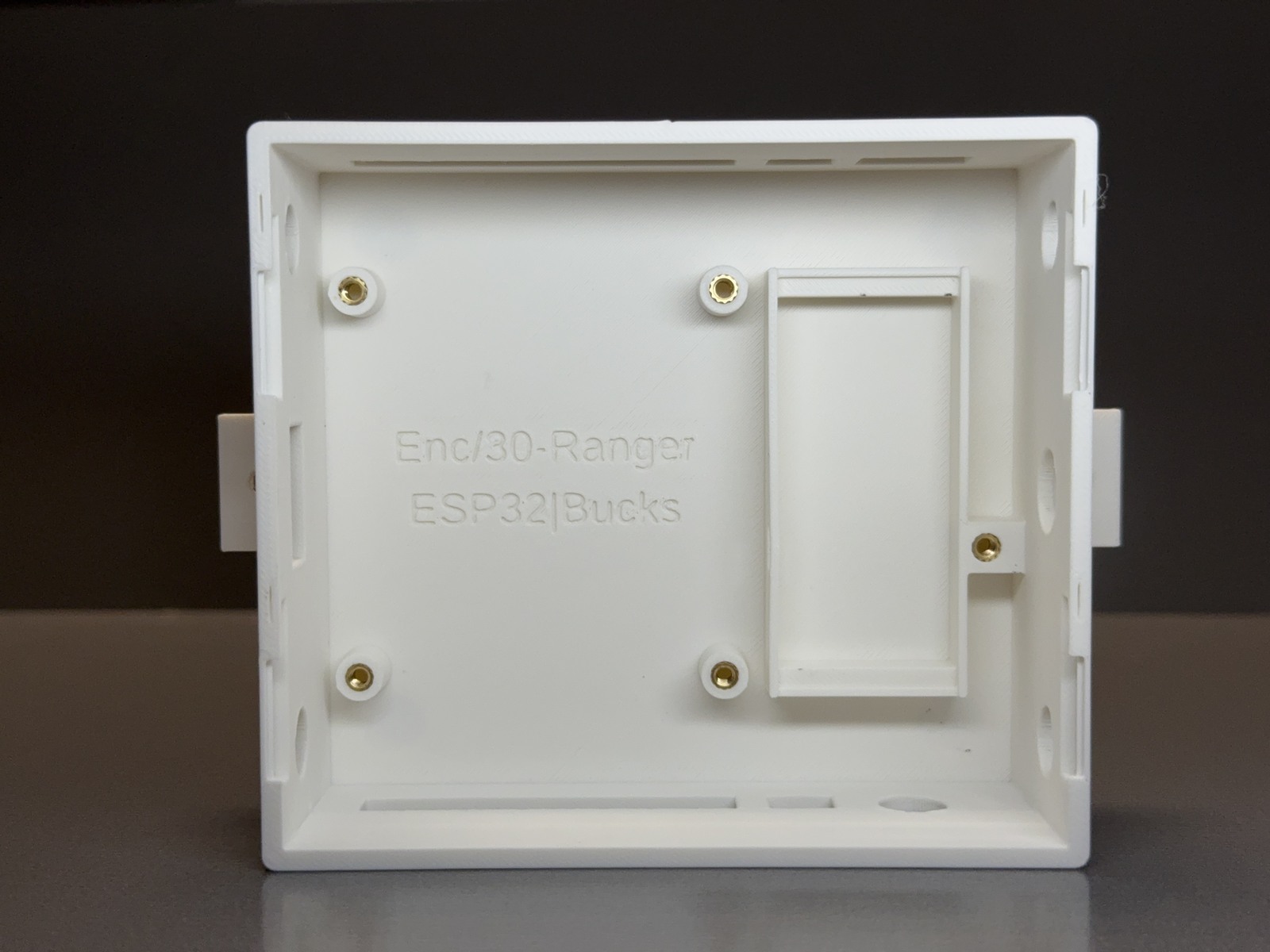

Ranger Bucks 30 board layout and HSI mounting example
Ranger Bucks 30

30-pin buck-ready layout / HSI

Interior reference showing the Ranger Bucks 30 buck-ready layout and HSI serviceable mounting points.

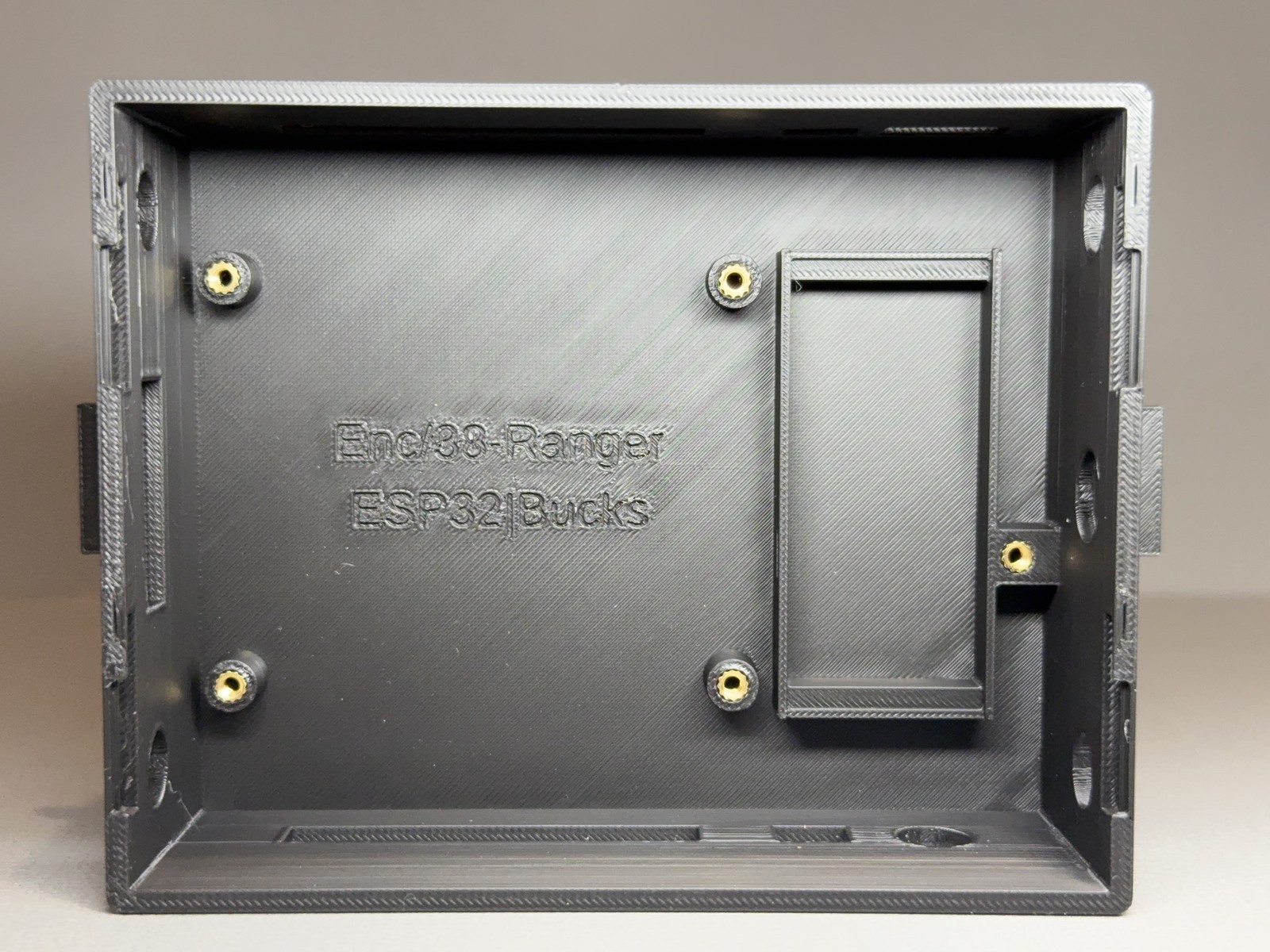

Ranger Bucks 38 board layout and HSI mounting example
Ranger Bucks 38

38-pin buck-ready layout / HSI

Interior reference showing the Ranger Bucks 38 buck-ready layout and HSI serviceable mounting points.

Command
Command and Command-GP layout examples

Command is the full-size family. These examples separate the Command Core layout from the Command-GP / Garage Panel layout.

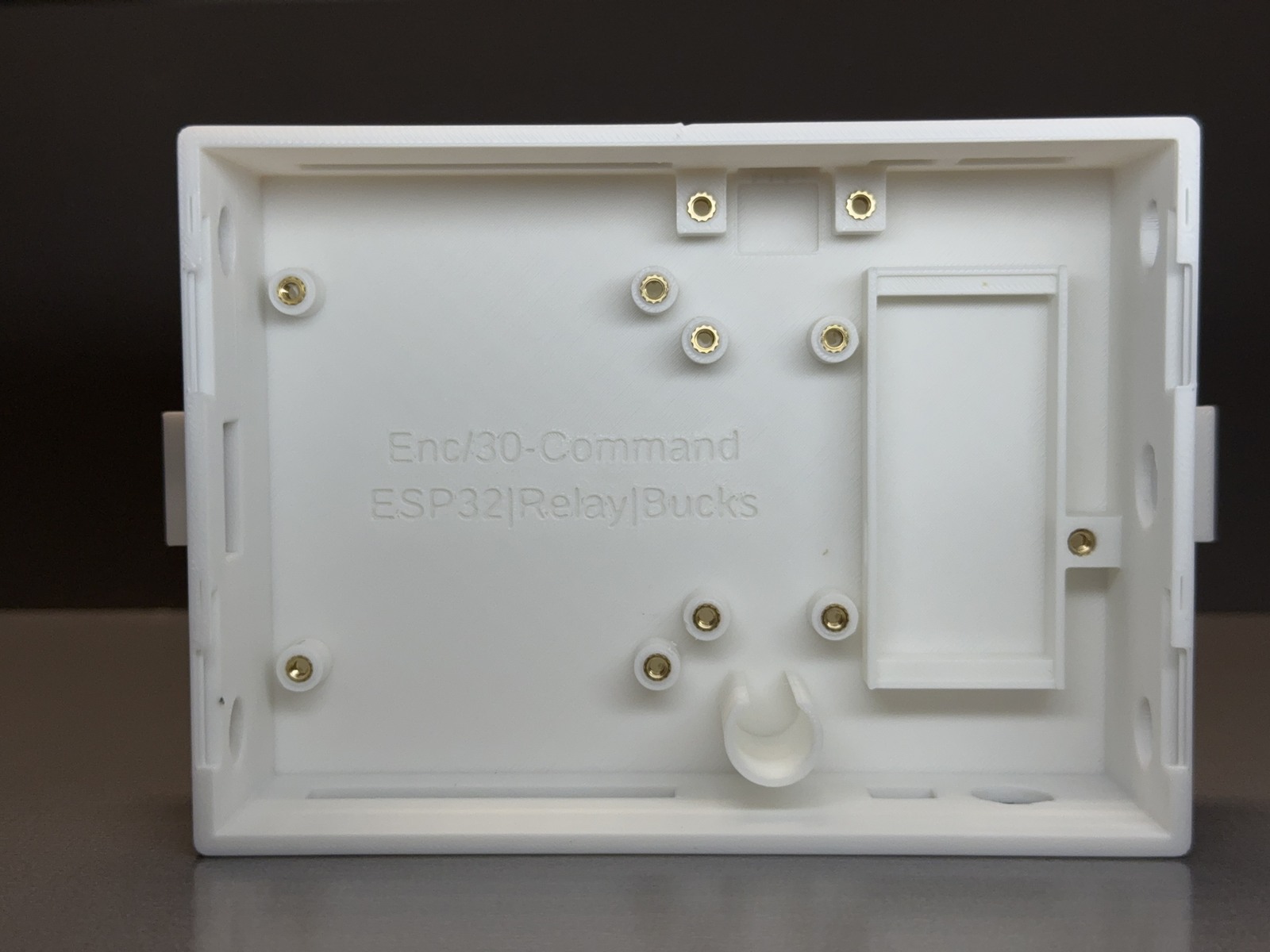

Command 30 board layout and HSI mounting example
Command 30

30-pin Command layout / HSI

Interior reference showing the Command 30 layout and HSI serviceable mounting points.

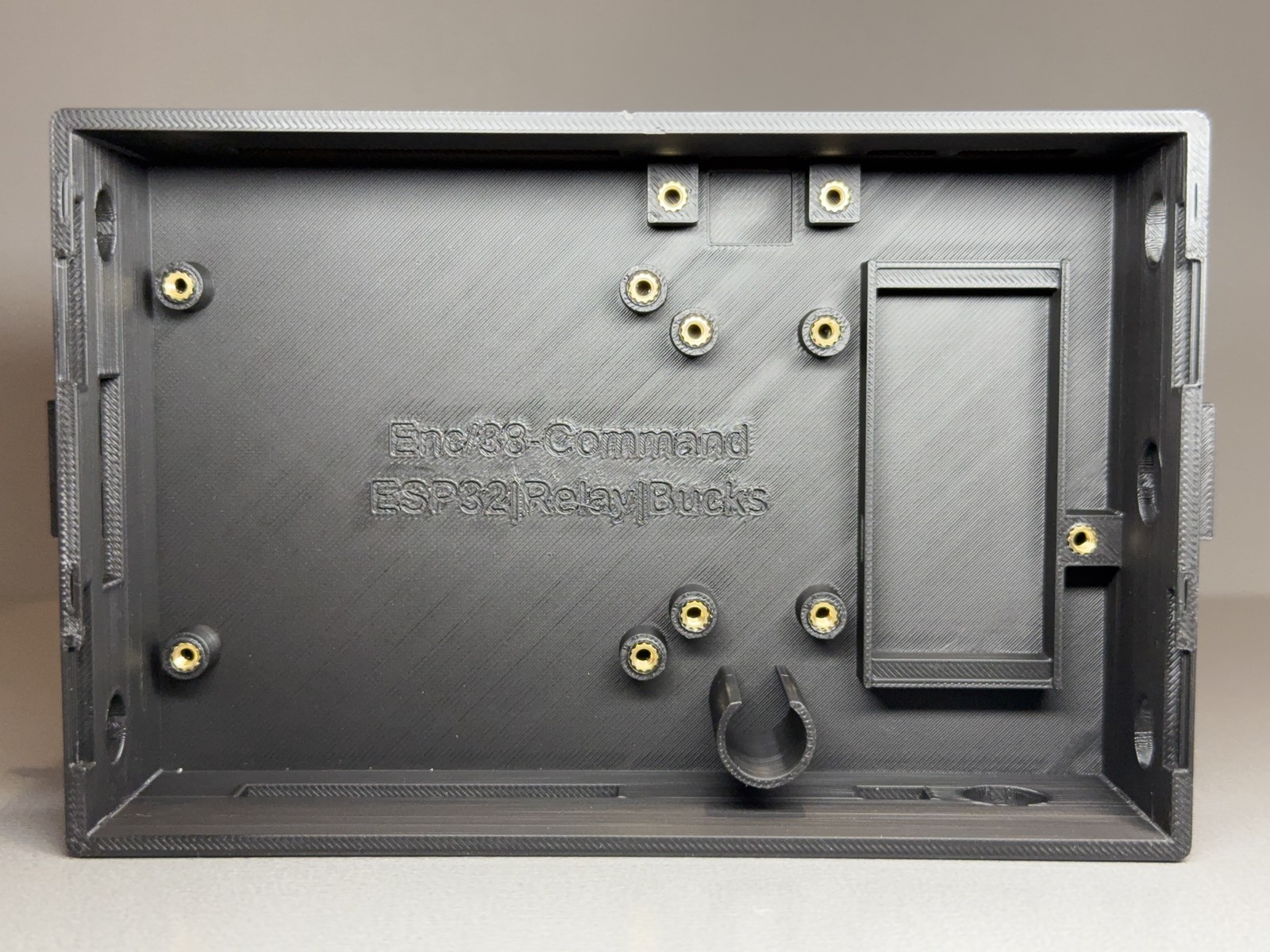

Command 38 board layout and HSI mounting example
Command 38

38-pin Command layout / HSI

Interior reference showing the Command 38 layout and HSI serviceable mounting points.

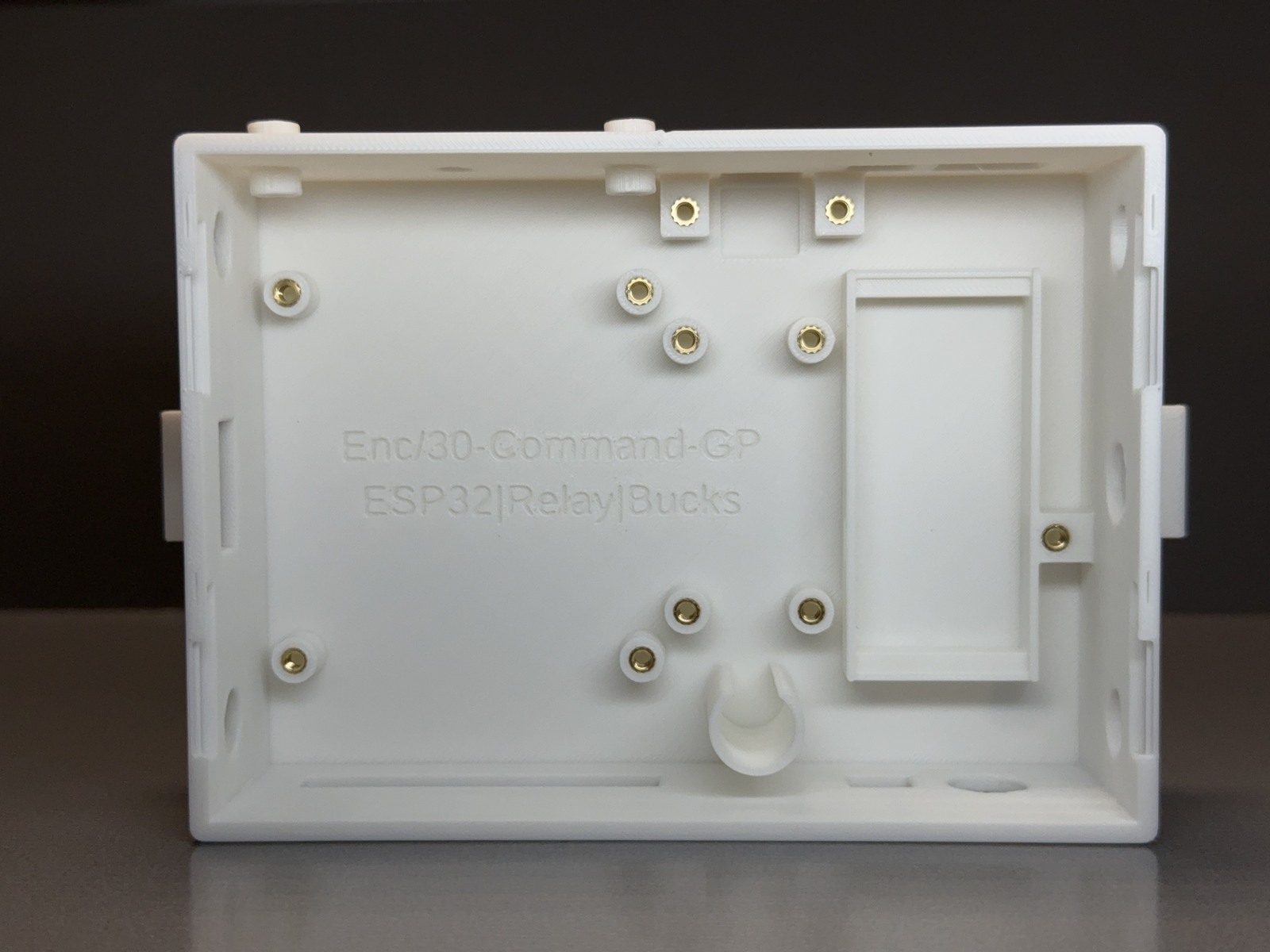

Command-GP 30 board layout and HSI mounting example
Command-GP 30

30-pin Garage Panel layout / HSI

Interior reference showing the Command-GP 30 Garage Panel layout and HSI serviceable mounting points.

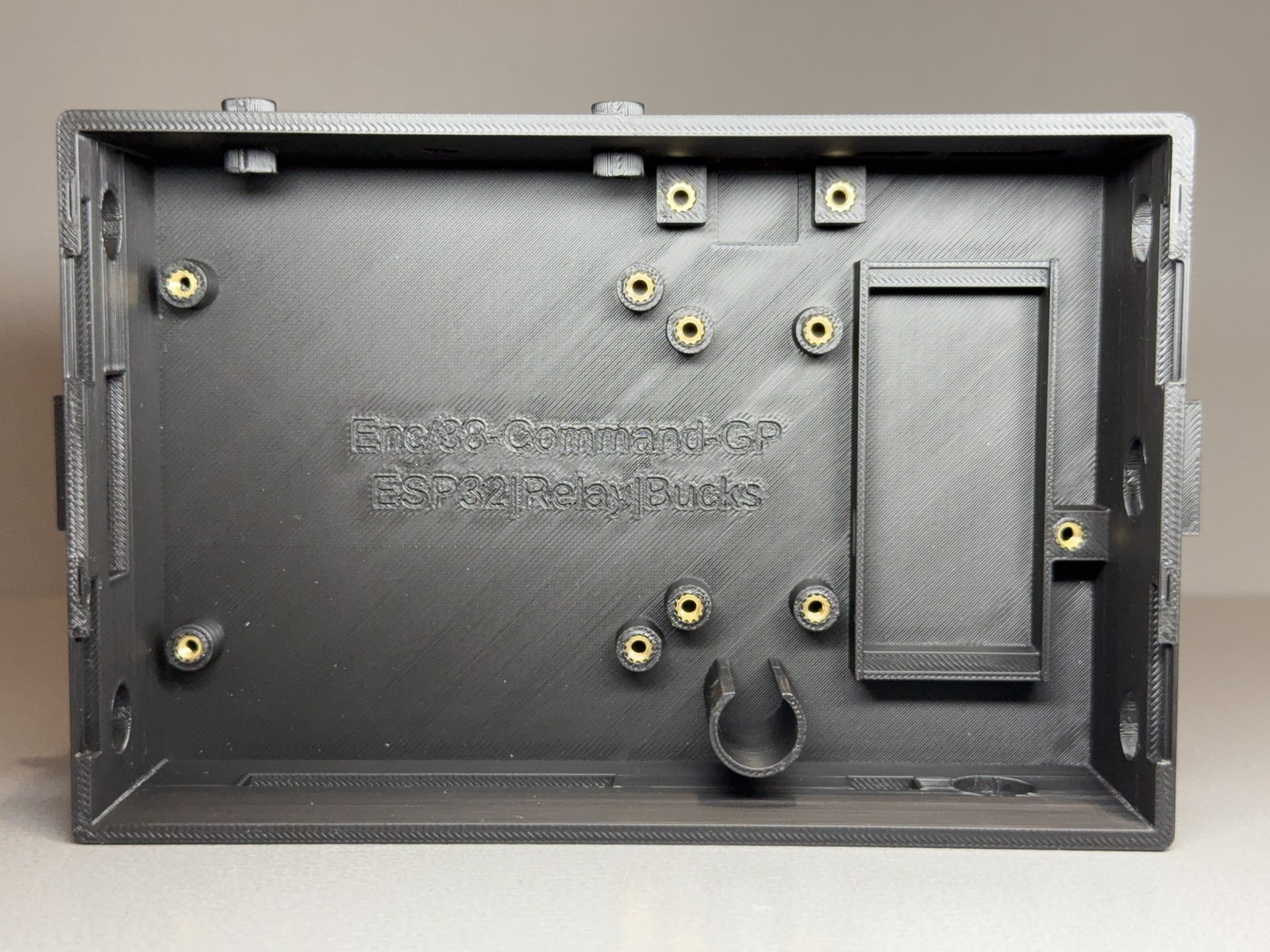

Command-GP 38 board layout and HSI mounting example
Command-GP 38

38-pin Garage Panel layout / HSI

Interior reference showing the Command-GP 38 Garage Panel layout and HSI serviceable mounting points.

Related Reference
Material and serviceability notes

For PLA+ 2.0, indoor-use limits, and HSI serviceability details, see the Materials & Serviceability page.

Materials

PLA+ 2.0, indoor use, and HSI mounting

WestTechHA enclosures are intended for indoor use and include HSI-based serviceable mounting points across the current product line.

View Materials & Serviceability
