Scout Enclosure Documentation

Reference information for Scout 30 and Scout 38 ESP32 enclosure listings on Tindie, updated to match the current WestTech Home Automation product wording and photo set.

Scout 30 / Scout 38 Unloaded / Loaded PLA+ 2.0 Brass threaded inserts

Overview

What Scout is

Scout is the compact WestTech Home Automation enclosure family for smaller indoor ESP32 and automation projects where a clean, serviceable enclosure matters more than extra internal room.

Best fit

Scout is a strong fit for DIY projects, compact control applications, sensor nodes, and customers who want a clean enclosure they can use almost anywhere they have power.

Models covered

Model	Board / layout	Approx. overall size	Notes
Scout 30 SCOUT-30	Compatible 30-pin ESP32 breakout-board layouts	4.25 in × 4.49 in × 1.77 in (108 × 114 × 45 mm)	Compact Scout footprint for smaller indoor builds.
Scout 38 SCOUT-38	Compatible 38-pin ESP32 breakout-board layouts	4.65 in × 4.49 in × 1.77 in (118 × 114 × 45 mm)	Compact Scout footprint with support for the larger 38-pin board format.

Dimensions include the installed lid, lid overhang, and mounting tabs. Exact listing options may vary by active Tindie product listing.

Unloaded and Loaded wording

Unloaded for your hardware plan

Unloaded is the bring-your-own-hardware path for customers who already know their electronics plan and need the printed enclosure family that fits the project.

Includes the printed enclosure, lid, brass threaded inserts, standard enclosure hardware, and matched insert layout.
Electronics and firmware are not included unless specifically stated in the Tindie listing.

Loaded with Quick Start firmware

Loaded is the pre-assembled path for customers who want the selected ESP32 and breakout-board hardware path handled before shipment.

Basic diagnostics are completed before shipment.
WestTech Home Automation ESP32 Quick Start firmware helps customers find, connect, verify, and prepare the device before uploading their own project firmware.

OLED displays, buzzers, sensors, wiring, and power supplies are optional/reference hardware unless the listing specifically includes them.

Tindie listing note: The individual Tindie product listing controls price, checkout, availability, order status, and shipping. This page is product documentation and reference information.

Printed material and serviceability

PLA+ 2.0 printed parts

Scout enclosures are printed in PLA+ 2.0 and are intended for indoor use. The material choice keeps the enclosure practical for clean indoor automation builds without presenting it as outdoor, wet-location, or high-heat rated.

Brass threaded inserts

Current WestTech Home Automation enclosures use brass threaded inserts at key mounting points. The inserts make the enclosure easier to assemble, reopen, service, and reuse during future hardware changes without wearing out printed plastic screw holes.

Indoor use only. Printed parts are not IP-rated and are not intended for wet, outdoor, high-heat, or direct-sunlight locations.

Current family photos

Photos show current WestTech Home Automation product examples. Finish color, child layout, and included electronics depend on the exact Tindie listing selected.

Scout 30 White enclosure with lid and inserts installed — Scout 30 White assembled with lid and inserts installed.

Scout 30 White front opening face — Scout 30 front face and opening layout.

Scout 38 Black enclosure with lid and inserts installed — Scout 38 Black assembled with lid and inserts installed.

Scout 38 Black board layout and brass insert mounting example — Scout 38 interior board layout with serviceable mounting points.

Compatible hardware examples

These photos show example hardware that can go inside compatible builds. Optional hardware such as OLED displays or buzzers is only included when the listing specifically says it is included.

30-pin ESP32 breakout-board example — Compatible 30-pin breakout-board example.

38-pin ESP32 breakout-board example — Compatible 38-pin breakout-board example.

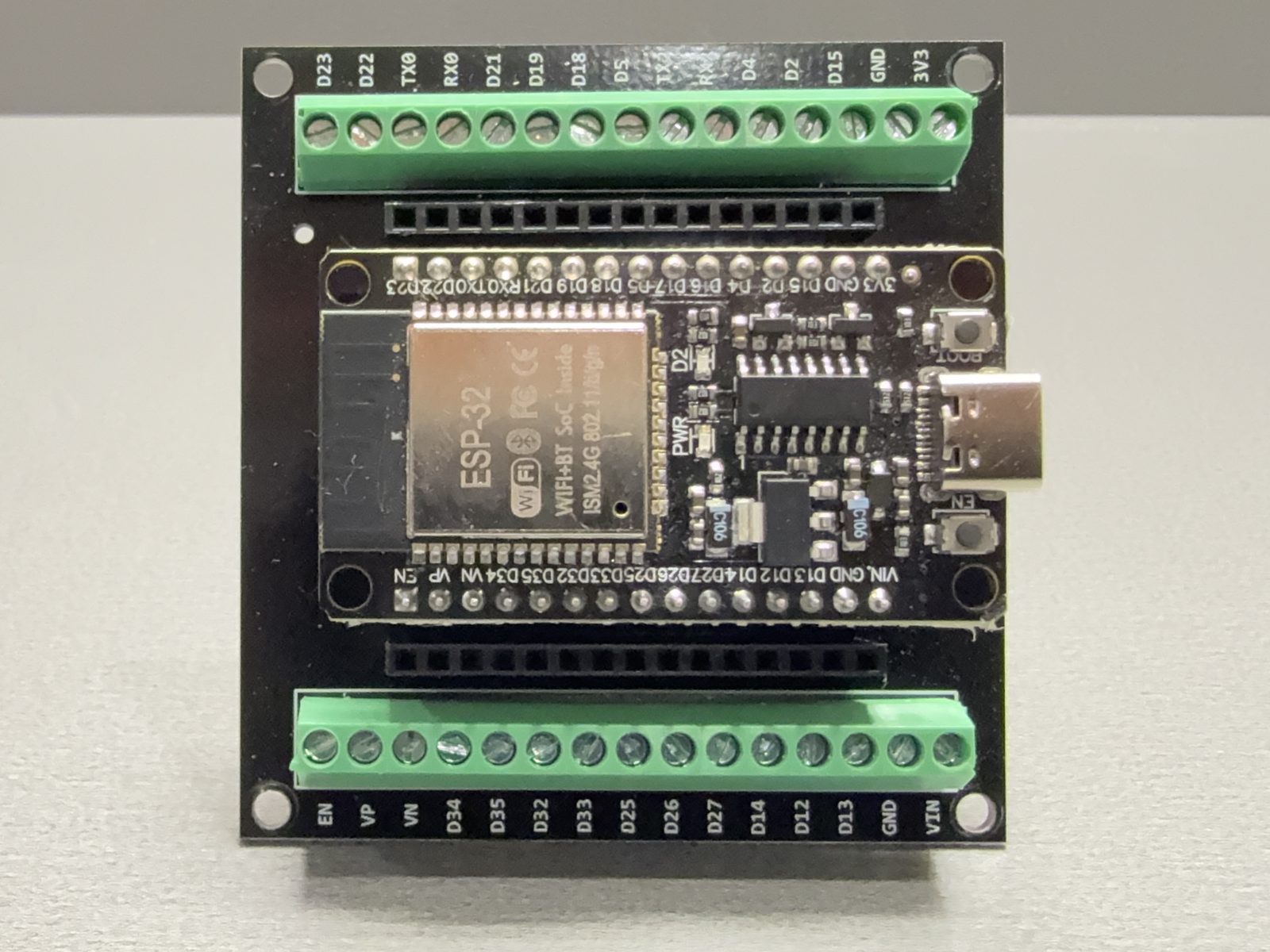

30-pin ESP32 WROOM board example — 30-pin ESP32-WROOM board example.

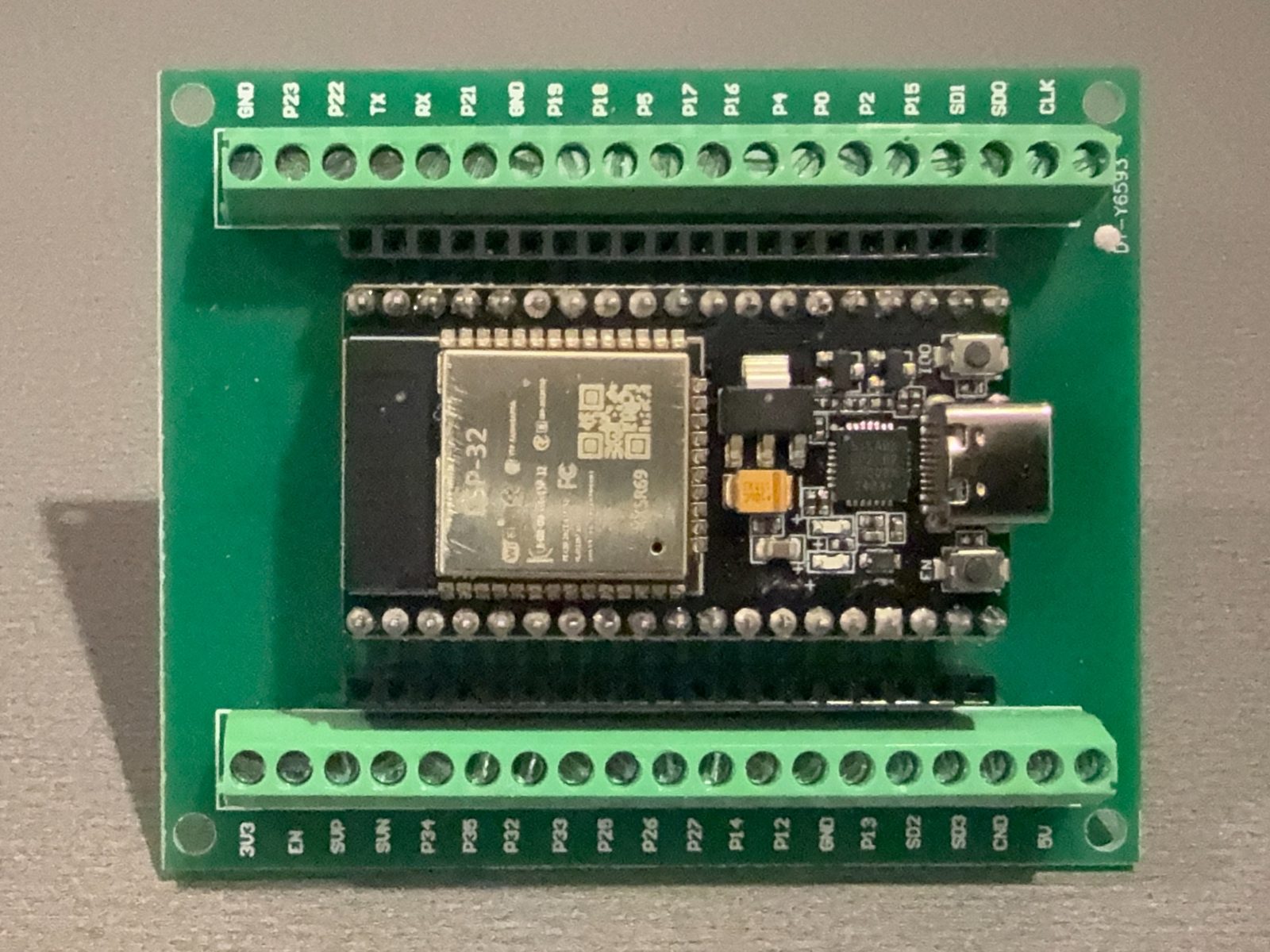

38-pin ESP32 WROOM board example — 38-pin ESP32-WROOM board example.

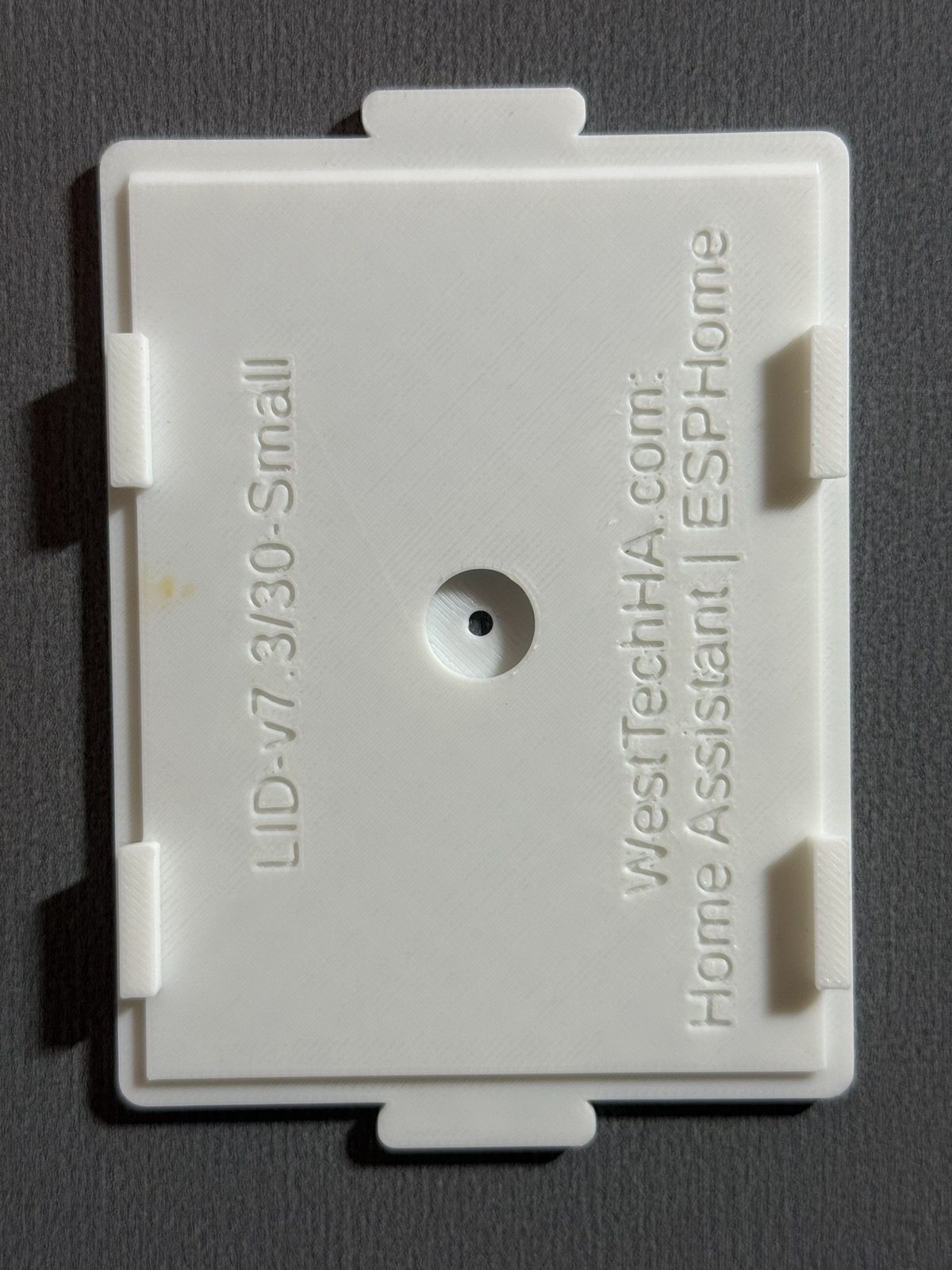

Scout buzzer-ready lid location — Buzzer-ready lid location reference. Buzzer hardware is optional unless listed.

Small buzzer example — Small buzzer hardware example. Optional unless the Tindie listing includes it.

Support and reference links

Use the Tindie message system for questions tied to a Tindie order. General documentation and support are also available from the official WestTech Home Automation website.
