Ranger Enclosure Documentation

Reference information for Ranger Relay and Ranger Bucks ESP32 enclosure listings on Tindie, updated to match the current WestTech Home Automation product wording and photo set.

Ranger Relay / Ranger Bucks Unloaded / Loaded PLA+ 2.0 Brass threaded inserts

Overview

What Ranger is

Ranger is the middle WestTech Home Automation enclosure family for projects that need more internal room than Scout without jumping to the larger Command platform.

Two Ranger paths

Ranger Relay is the relay-oriented option. Ranger Bucks keeps the Ranger footprint while adding a buck-ready layout for power-planning needs.

Models covered

Model	Board / layout	Approx. overall size	Notes
Ranger Relay 30 RANGER-RELAY-30	Compatible 30-pin ESP32 relay-oriented layout	5.24 in × 4.49 in × 1.77 in (133 × 114 × 45 mm)	Mid-size Ranger footprint with relay-oriented planning space.
Ranger Relay 38 RANGER-RELAY-38	Compatible 38-pin ESP32 relay-oriented layout	5.75 in × 4.49 in × 1.77 in (146 × 114 × 45 mm)	Mid-size Ranger footprint for larger 38-pin relay-oriented layouts.
Ranger Bucks 30 RANGER-BUCKS-30	Compatible 30-pin ESP32 buck-ready layout	5.24 in × 4.49 in × 1.77 in (133 × 114 × 45 mm)	Ranger footprint with buck-ready power-planning layout.
Ranger Bucks 38 RANGER-BUCKS-38	Compatible 38-pin ESP32 buck-ready layout	5.75 in × 4.49 in × 1.77 in (146 × 114 × 45 mm)	Ranger footprint with larger 38-pin buck-ready layout.

Dimensions include the installed lid, lid overhang, and mounting tabs. Exact listing options may vary by active Tindie product listing.

Unloaded and Loaded wording

Unloaded for your hardware plan

Unloaded is the bring-your-own-hardware path for customers who already know their electronics plan and need the printed enclosure family that fits the project.

Includes the printed enclosure, lid, brass threaded inserts, standard enclosure hardware, and matched insert layout.
Electronics and firmware are not included unless specifically stated in the Tindie listing.

Loaded with Quick Start firmware

Loaded is the pre-assembled path for customers who want the selected ESP32 and breakout-board hardware path handled before shipment. Ranger Relay Loaded adds the relay-oriented hardware path where listed. Ranger Bucks Loaded adds the buck-ready hardware path where listed.

Basic diagnostics are completed before shipment.
WestTech Home Automation ESP32 Quick Start firmware helps customers find, connect, verify, and prepare the device before uploading their own project firmware.

OLED displays, buzzers, sensors, wiring, and power supplies are optional/reference hardware unless the listing specifically includes them.

Tindie listing note: The individual Tindie product listing controls price, checkout, availability, order status, and shipping. This page is product documentation and reference information.

Printed material and serviceability

PLA+ 2.0 printed parts

Ranger enclosures are printed in PLA+ 2.0 and are intended for indoor use. Ranger provides more working room than Scout while keeping the enclosure practical for clean indoor automation and low-voltage project builds.

Brass threaded inserts

Current WestTech Home Automation enclosures use brass threaded inserts at key mounting points. The inserts make the enclosure easier to assemble, reopen, service, and reuse during future hardware changes without wearing out printed plastic screw holes.

Indoor use only. Printed parts are not IP-rated and are not intended for wet, outdoor, high-heat, or direct-sunlight locations.

Current family photos

Photos show current WestTech Home Automation product examples. Finish color, child layout, and included electronics depend on the exact Tindie listing selected.

Ranger Relay 30 White enclosure with lid and inserts installed — Ranger Relay 30 White assembled with lid and inserts installed.

Ranger Relay 38 Black enclosure with lid and inserts installed — Ranger Relay 38 Black assembled with lid and inserts installed.

Ranger Bucks 30 White enclosure with lid and inserts installed — Ranger Bucks 30 White assembled with lid and inserts installed.

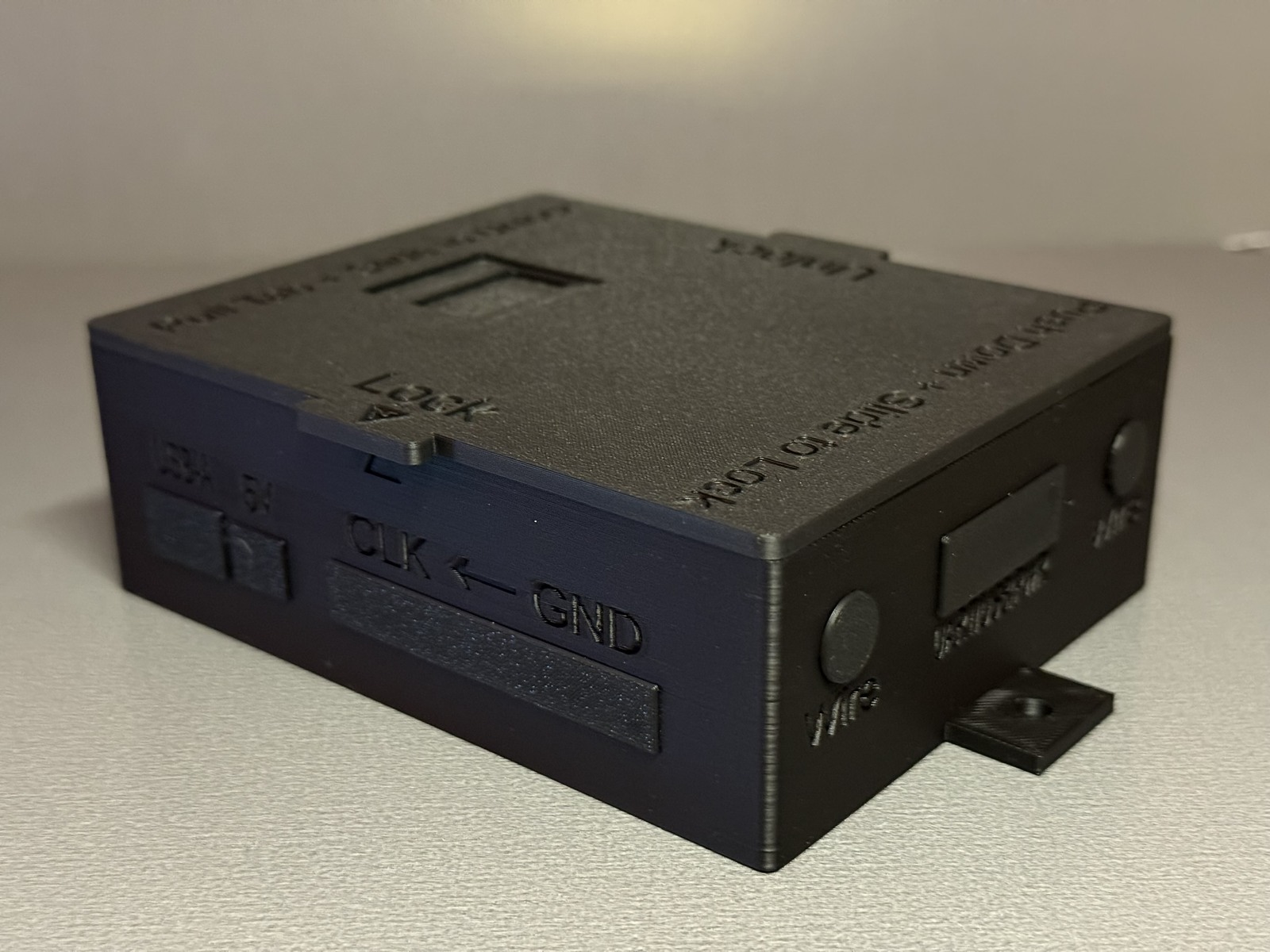

Ranger Bucks 38 Black enclosure with lid and inserts installed — Ranger Bucks 38 Black assembled with lid and inserts installed.

Ranger Relay 30 board layout and brass insert mounting example — Ranger Relay board-layout and serviceable mounting reference.

Ranger Bucks 30 board layout and brass insert mounting example — Ranger Bucks board-layout and serviceable mounting reference.

Compatible hardware examples

These photos show example hardware that can go inside compatible builds. Optional hardware such as OLED displays or buzzers is only included when the listing specifically says it is included.

30-pin ESP32 breakout-board example — Compatible 30-pin breakout-board example.

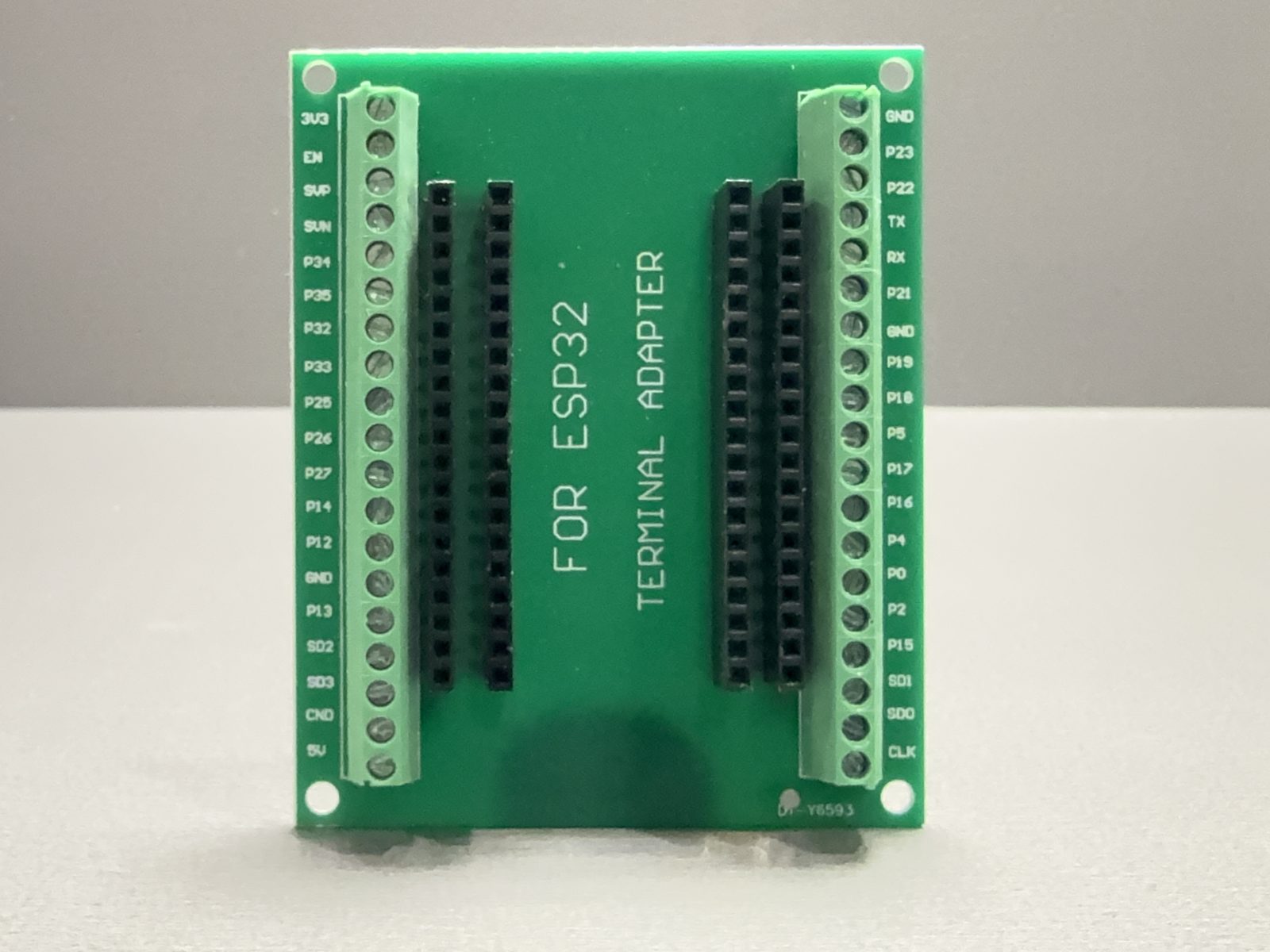

38-pin ESP32 breakout-board example — Compatible 38-pin breakout-board example.

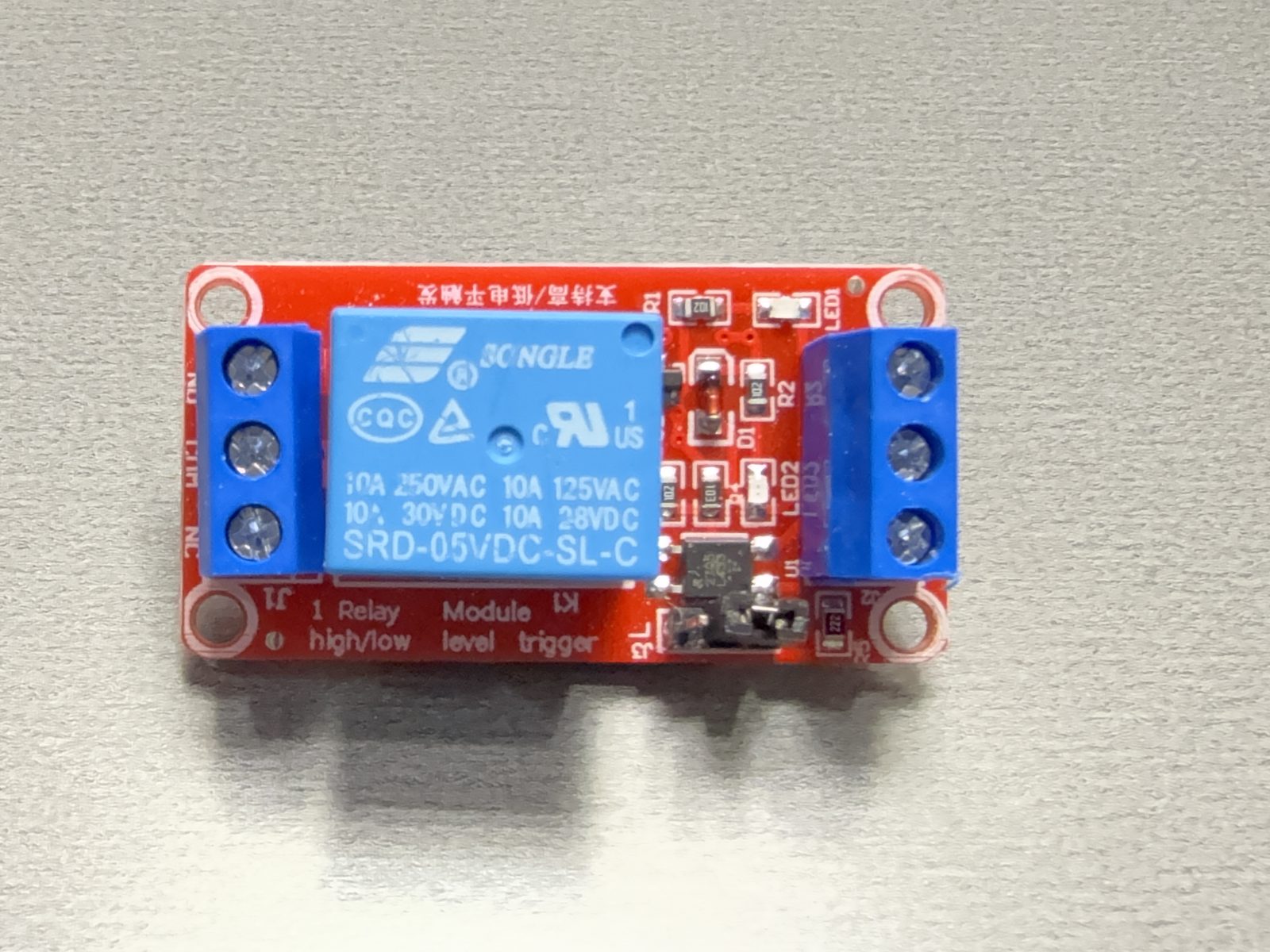

5V relay module example — Relay module example. Included only when the Tindie listing states it is included.

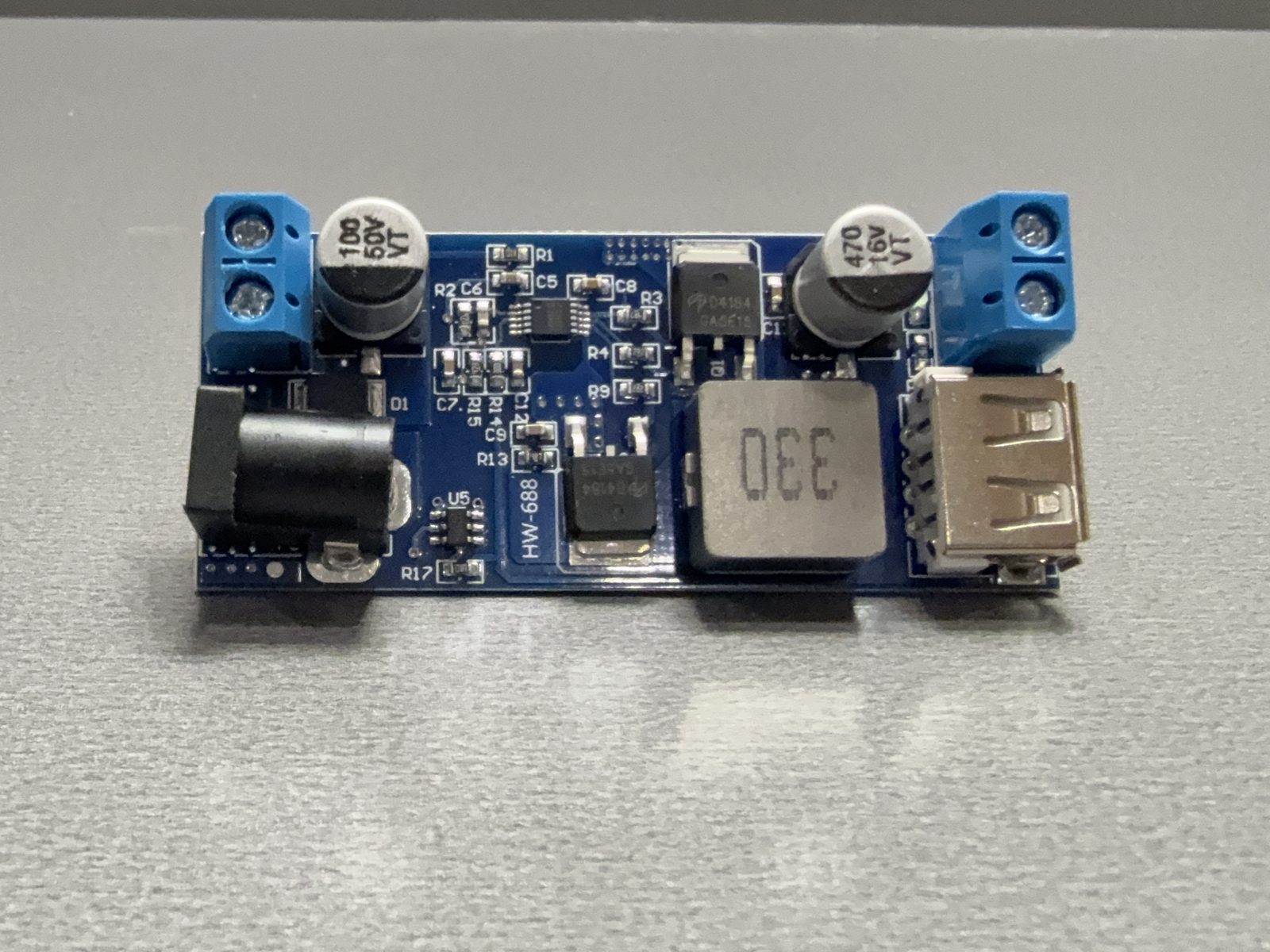

Buck converter example. Included only when the Tindie listing states it is included.

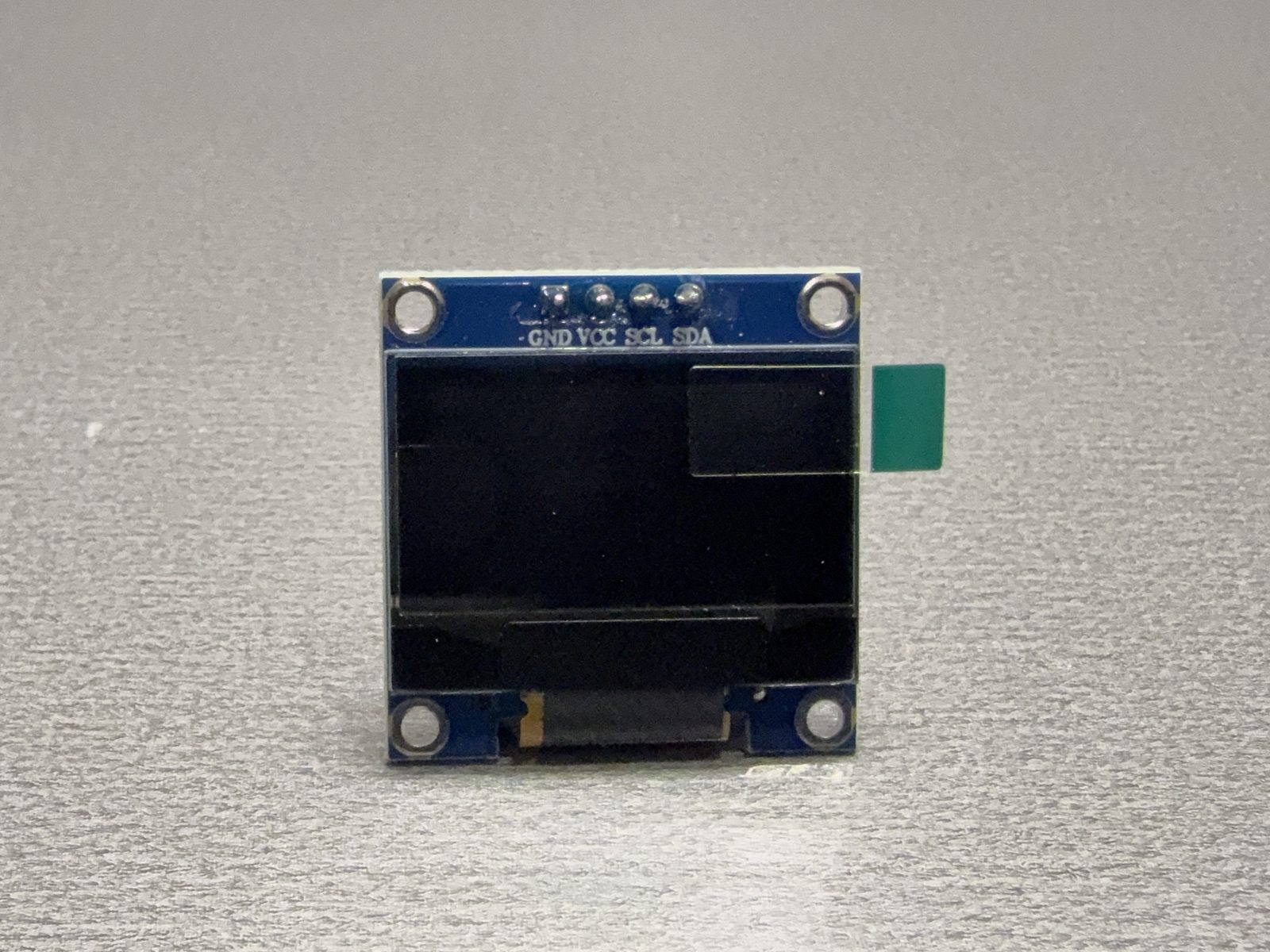

OLED display example — OLED display reference. Optional unless the Tindie listing includes it.

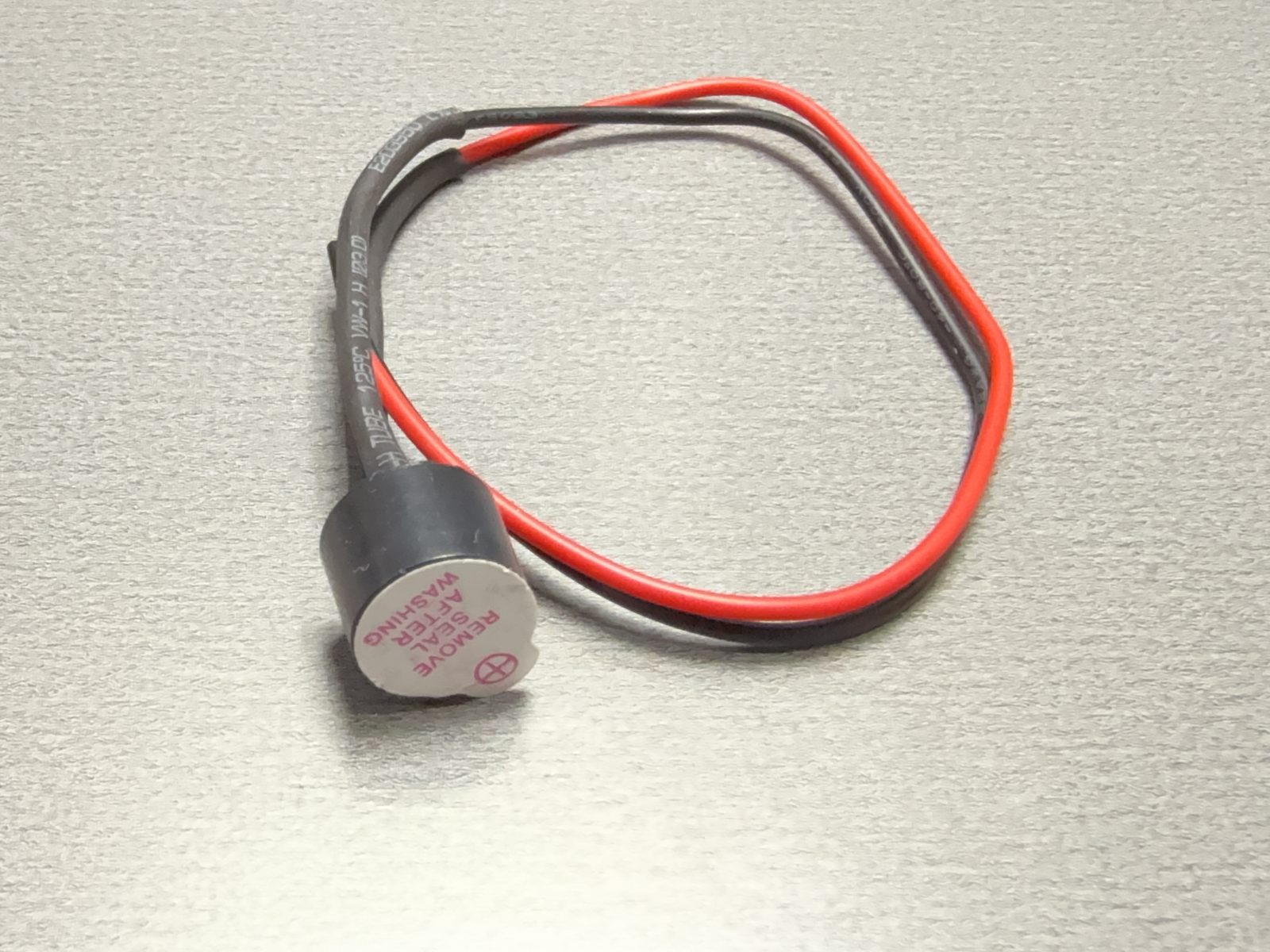

Small buzzer example — Small buzzer hardware example. Optional unless the Tindie listing includes it.

Support and reference links

Use the Tindie message system for questions tied to a Tindie order. General documentation and support are also available from the official WestTech Home Automation website.
